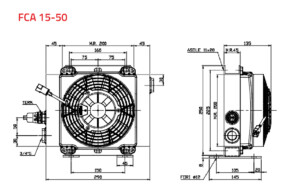

FCA 15-50 – Aluminium oil cooler

Compact aluminium oil cooler for hydraulic circuits, designed to ensure efficient oil cooling in industrial and mobile applications.
Ask for information

Description

The FCA 15-50 is an aluminium oil cooler designed for oil cooling in hydraulic circuits.

Thanks to its compact design and aluminium construction, it ensures high heat exchange efficiency and good resistance to demanding working conditions.

The oil cooler is suitable for industrial, mobile and hydraulic applications where fluid temperature control is required to ensure system reliability and continuous operation.

Main features

  • Aluminium oil cooler
  • Compact and lightweight structure
  • High cooling efficiency
  • Suitable for hydraulic circuits
  • Ideal for industrial and mobile applications
  • Construction designed for continuous operation

Model
 Oil flow capacity (l) Ø Fan (mm) Performance (kW) Pressure (bar) Protection (IP) Noise Level (dba) Weight (kg) Current (A)
12 V 24 V
FCA 5-40 5-40 190 4.4 26 68 68 3 6.2 3.1
FCA 15-50 10-80 190 4.4 26 68 68 3.5 6.2 3.1
FCA 30-60 10-100 190 4.8 26 68 68 5 6.2 3.1
FCA 20-100 20-100 225 5.6 26 68 78 6 7.7 4.3
FCA 25-140 10-140 280 10.8 26 68 78 7 7.7 4.3
FCA 45-90 10-120 280 8.8 26 68 74 6 7.8 3.9
FCA 40-140 10-140 280 8.8 26 68 74 7 7.8 3.9
FCA 45-170 20-180 385 11.2 26 68 79 12 18.1 8
FCA 40-180 30-180 280 10.8 26 68 78 28 15.2 7.1
FCA 35-250 40-250 385 13.2 26 68 70 18 18.1 8
FCA 40-320 40-320 280 x 2 28.8 26 68 85 40 16.6 x 2 8 x 2

The product complies with Machinery Directive 2006/42/EC.
