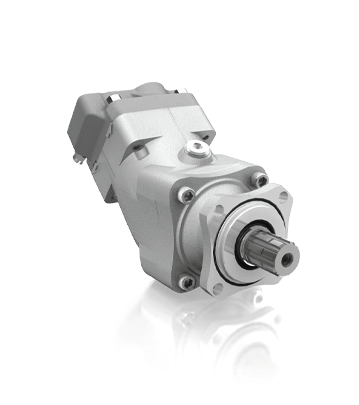

The SCPD 56/26 DIN is a fixed displacement dual flow piston pump designed for demanding mobile hydraulic applications requiring two independent flows.
The dual circuit configuration allows simultaneous supply to two hydraulic lines, ensuring high performance in terms of flow performance, pressure and efficiency, while providing greater flexibility in operation.
The pump is designed to meet high market demands regarding performance and compact installation dimensions. It can be mounted directly on the power take-off or on a bracket via an intermediate shaft, allowing different installation configurations.
The light weight metal casing contributes to reduced overall weight and improved heat dissipation during operation. The design also ensures smooth operation over the entire speed range and long service life thanks to high demands on material selection.
| MODEL |
Theoretical oil flow, A+B at pump speed (l/min) |
Displacement (cm3/rev) | Max pump speed (rpm) | Max working pressure (bar) | Weight (kg) | Tare-weight torque - M (Nm) | Direction of rotation | ||||
| 600 rpm | 1000 rpm | 1200 rpm | 1500 rpm | 1800 rpm | |||||||
| SCPD 56/26 DIN | 34+16 = 50 | 56+26 = 82 | 67+31 = 98 | 84+39 = 123 | 101+47 = 148 | 56.0+26.1 | 1850 | 400 | 18.0 | 21.0 | LEFT (L) or RIGHT (R) |
Theoretical power at pressure and pump speed
| 200 Bar | 300 Bar | 400 Bar | |
| 600 rpm | 11.2+5.2=16.4 kW | 16.8+7.8=24.6 kW | 22.4+10.4=32.8 kW |
| 1200 rpm | 22.4+10.4=32.8 kW | 33.6+15.6=49.2 kW | 44.8+20.8=65.6 kW |
| 1800 rpm | 33.6+15.6=49.2 kW | 50.4+23.4=73.8 kW | 67.2+31.2=98.4 kW |
Nominal torque on pump shaft at different pressures
| 200 Bar | 300 Bar | 400 Bar |
| 178+83=261
Nm
|
267+124=391
Nm
|
356+165=521
Nm
|
The supply includes a 45° fitting (code 20100).
