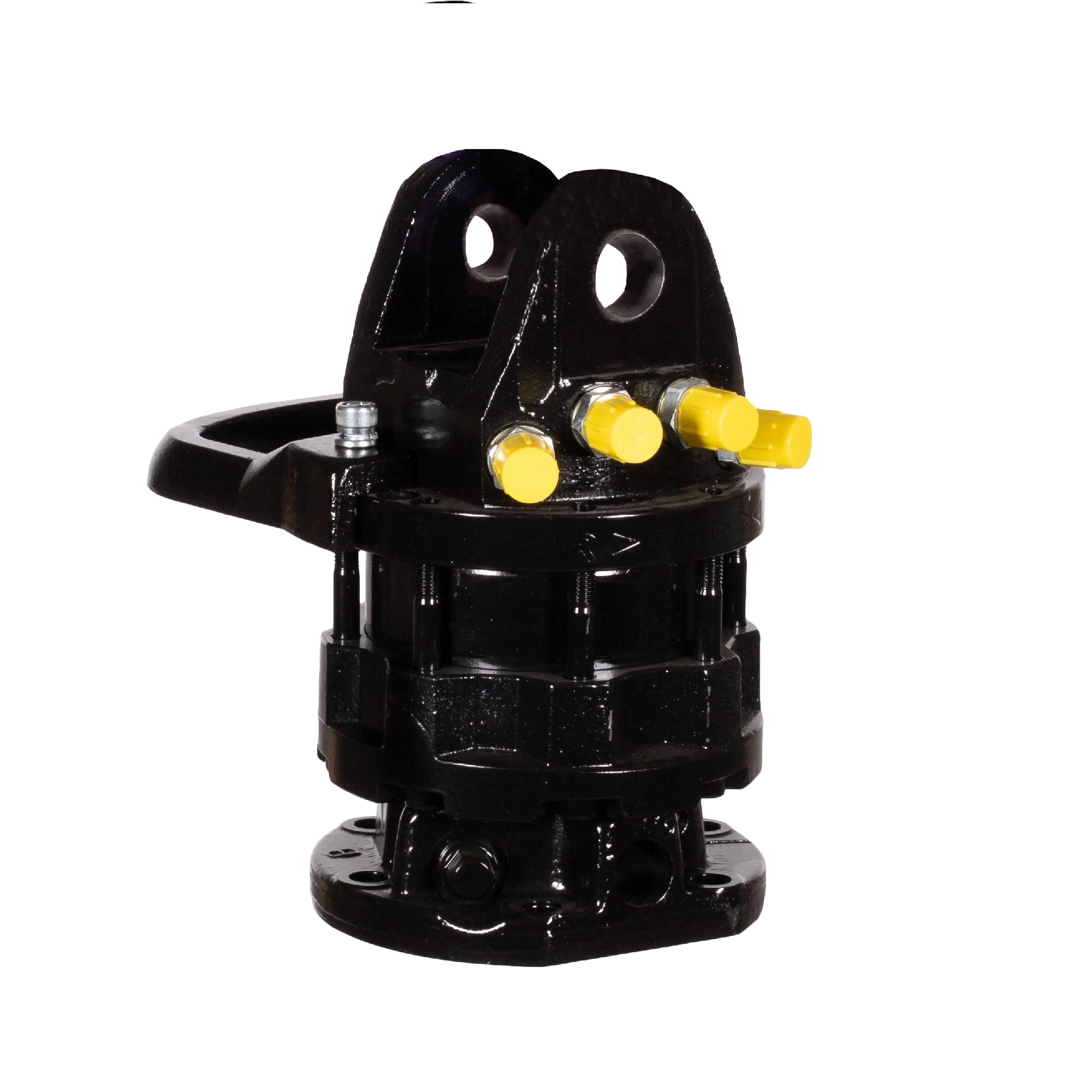

FR 128 SXF Flanged hydraulic rotator

The FR 128 SXF hydraulic rotator is designed for applications on cranes and operating machines, enabling controlled load rotation in demanding working conditions.

Static Load: 12 T.

Ask for information

Description

The FR 128 SXF flanged hydraulic rotator is intended for material handling systems installed on cranes and operating machines.

Its function is to enable controlled rotation of the connected attachment, improving precision during gripping and load positioning operations.

It is suitable for various applications, including construction sites, industrial handling, loading and unloading operations and forestry activities, where reliability is required in load management.

Compatibility with different crane and machine models allows easy integration into existing systems, improving handling performance and maneuverability.

Hydraulic rotation system

The FR 128 SXF is manufactured using high-strength materials, ensuring reliability even in heavy-duty working conditions.

It is equipped with a 4-way hydraulic system, allowing efficient flow management between the machine and connected attachments, ensuring smooth and continuous rotation.

The flanged configuration provides a stable connection between rotator, crane and attachment, improving force transmission during handling operations.

Model
 Static Load (kg)

 Dynamic Load (kg)

 Weight (kg)

 Pressure (bar) Rotation

 Torque (Nm)

 Oil Flow (l/min)

 D (mm)
GC R GO
FR 85 SXF 7000 3500 41 300 250 200 360° cont. 1900 25 35
FR 85 SXF/2 7000 3500 44 300 250 200 360° cont. 1900 25 35
FR 128 SXF 12000 6000 56 300 300 300 360° cont. 2700 30 35
FR 128 SXF/2 12000 6000 59 300 300 300 360° cont. 2700 30 35
FR 165 SXF 16000 6000 67 300 250 300 360° cont. 3300 25 45

According 2006/42/CE  EN12100:2010
