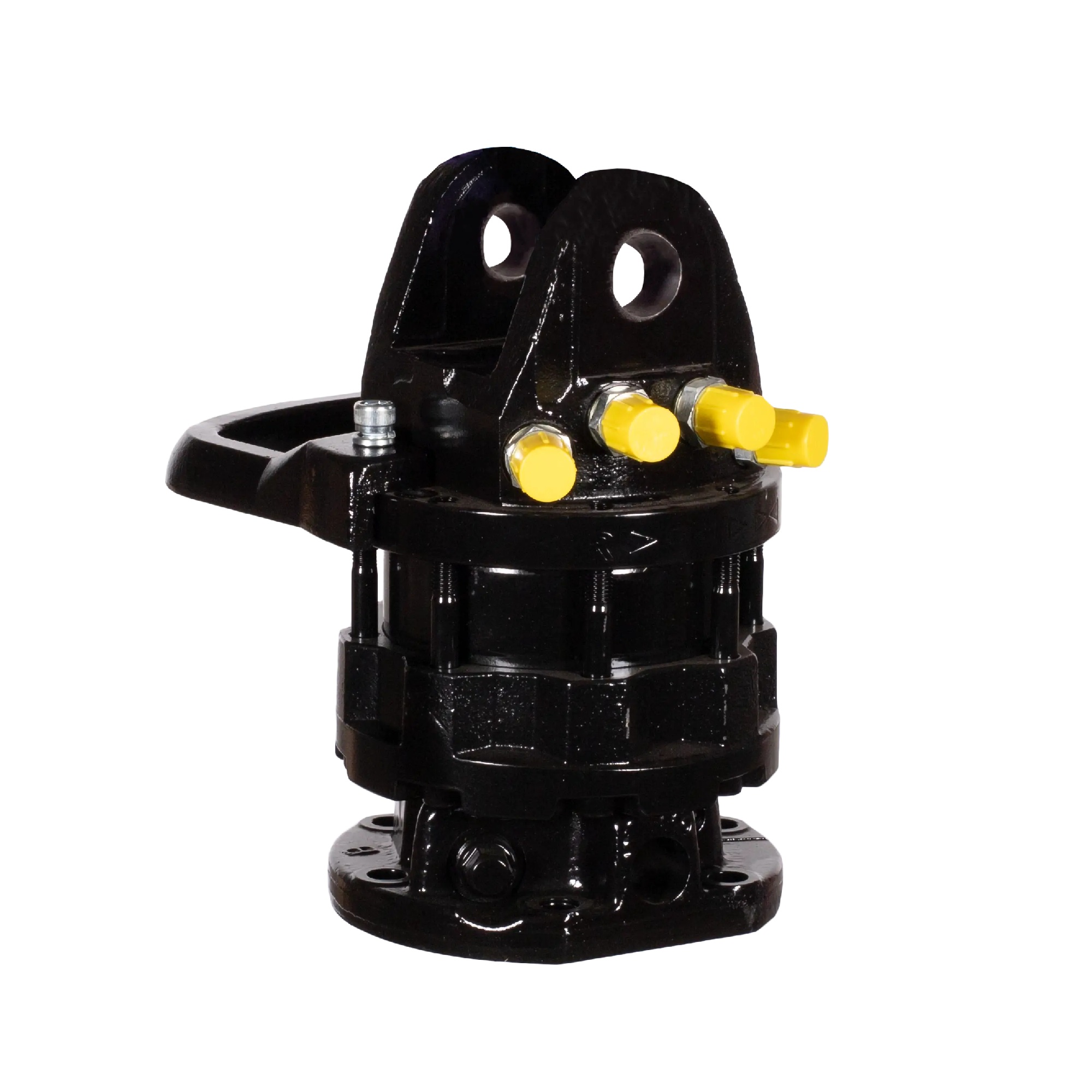

The FR 85 SXF hydraulic rotator is designed for applications on medium and large cranes and operating machines, enabling controlled load rotation during handling operations.
Static Load: 7 T.
The FR 85 SXF flanged hydraulic rotator is intended for use on cranes and operating machines involved in material handling.
The flanged configuration ensures a stable connection between the lifting machine and the attachment, allowing precise rotation during working operations.
It is suitable for industrial, forestry and hydraulic crane applications, where accurate load positioning is required.
The rotator acts as a connection element between machine and attachments, improving control and operational continuity.
Hydraulic rotation system
The FR 85 SXF is equipped with a 4-way hydraulic system, ensuring proper management of the hydraulic circuit between the machine and connected attachments, providing smooth and controlled rotation.
The robust construction, made of durable materials, is designed for demanding working conditions, ensuring long-term reliability.
The flanged configuration allows effective transmission of stresses between crane and attachment, improving stability and precision during handling operations.
| Model |
Static Load (kg) |
Dynamic Load (kg) |
Weight (kg) |
Pressure (bar) | Rotation |
Torque (Nm) |
Oil Flow (l/min) |
D (mm) |
||
| GC | R | GO | ||||||||
| FR 85 SXF | 7000 | 3500 | 41 | 300 | 250 | 200 | 360° cont. | 1900 | 25 | 35 |
| FR 85 SXF/2 | 7000 | 3500 | 44 | 300 | 250 | 200 | 360° cont. | 1900 | 25 | 35 |
| FR 128 SXF | 12000 | 6000 | 56 | 300 | 300 | 300 | 360° cont. | 2700 | 30 | 35 |
| FR 128 SXF/2 | 12000 | 6000 | 59 | 300 | 300 | 300 | 360° cont. | 2700 | 30 | 35 |
| FR 165 SXF | 16000 | 6000 | 67 | 300 | 250 | 300 | 360° cont. | 3300 | 25 | 45 |
According 2006/42/CE EN12100:2010
