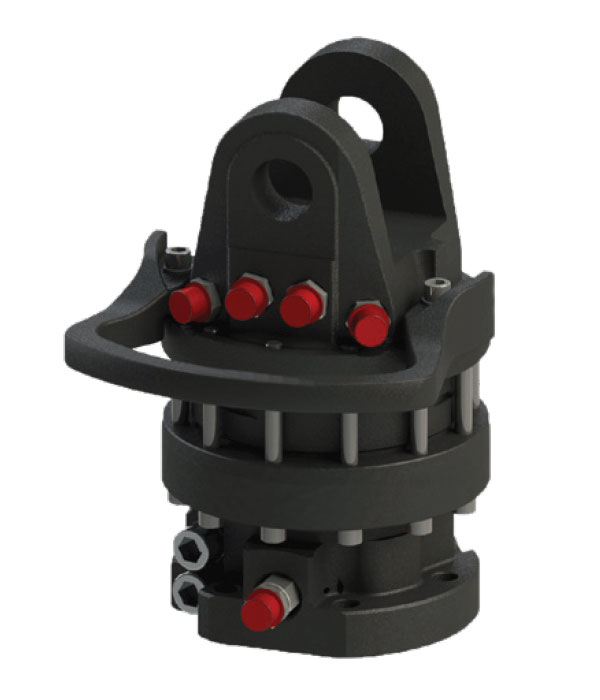

The hydraulic rotator FR 175 DBX-F/2 flanged version, double handle, has continuous rotation and it's suitable for each kind of application on cranes or excavators.
The hydraulic rotator FR 175 DBX-F/2, flanged version with double handle, has continuous rotation and it's suitable for each kind of application on cranes or excavators .
Load Capacity 17 Ton.
| Technical data | |
| Static max load (kg.) | 17000 |
| Dinamic max load (kg) | 8500 |
| Torque (Nm) | 3600 |
| Rec flow rate (l/min) | 30 |
| Max working pressure (bar) | 250 |
| Rotation | 360° |
| D (mm) | 45 |
| Weight (kg) | 80,00 |
