Piston pump SCP 064

Piston pump SUNFAB  SAP 012-108 DIN  is a series of  light weight casing piston pumps with a fixed displacement for demanding mobile hydraulics.
Delivery time: 1/2 weeks.

Ask for information

Description

Piston pump SUNFAB  SAP 012-108 DIN  is a series of light weight casing piston pumps with a fixed displacement for demanding mobile hydrualics.

Some advantages:

. Light weight metal casing design,
. Smooth operation over the entire spedd range,
. Long life due to high demands on material selection, such a bearingsm seals, ect
. Corrosion free light metal-housing,
. Less heat generation due to better ability to dissipate heat through housing

Technical Data
 SAP 064

Theoretical oil flow l/min at pump speed (rpm)

. 500

. 1000

. 1500


31.8

63.6

95.4

Displacement (cm3/rev) 63.6

Max pump speed continuous limited (rpm)

.continuous

.limited


1900

2500

Max working pressure (bar)

400

Weight (kg) 9.8
Tare-weight torque (M)     (Nm) 11.5
Direction of rotation

Left (L) or Right (R)

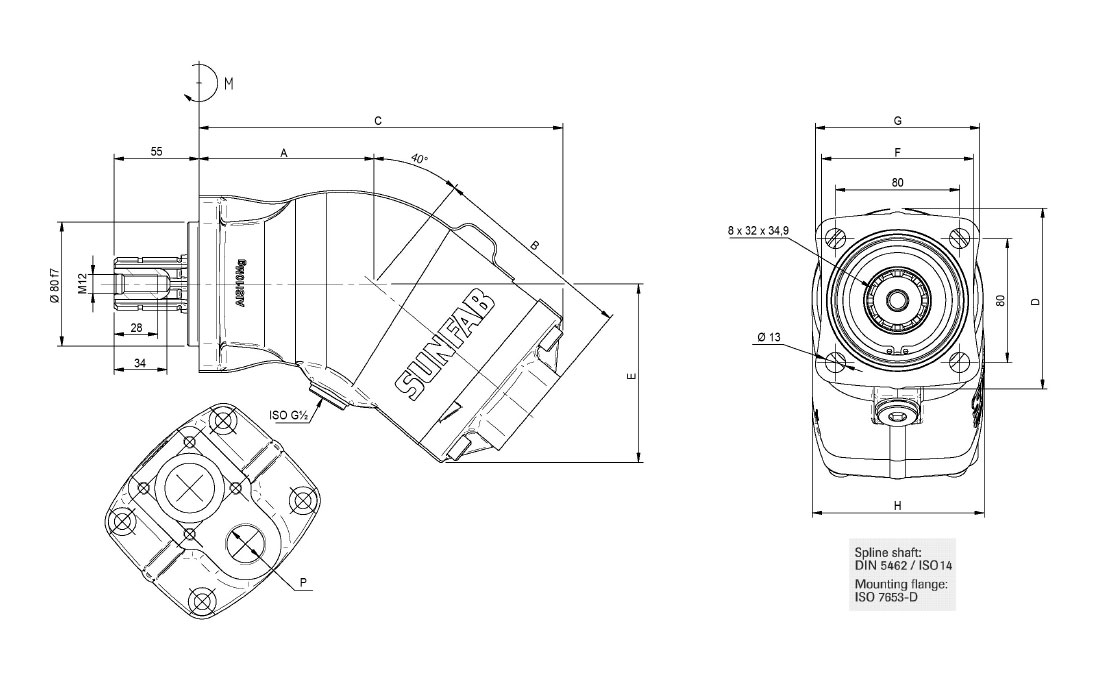

Dim. SAP 012

Dimensioni

A

mm

B

mm

C

mm

D

mm

E

mm

F

mm

G

mm

H

mm

P

ISO G

113 131 235 118 115 98 106

111

3/4
